2 Nozzles Hot Filling and Cooling Line
EGHF-02A 2 Nozzles Hot Filling and Cooling line needs to customize puck holders for different jar/tube.

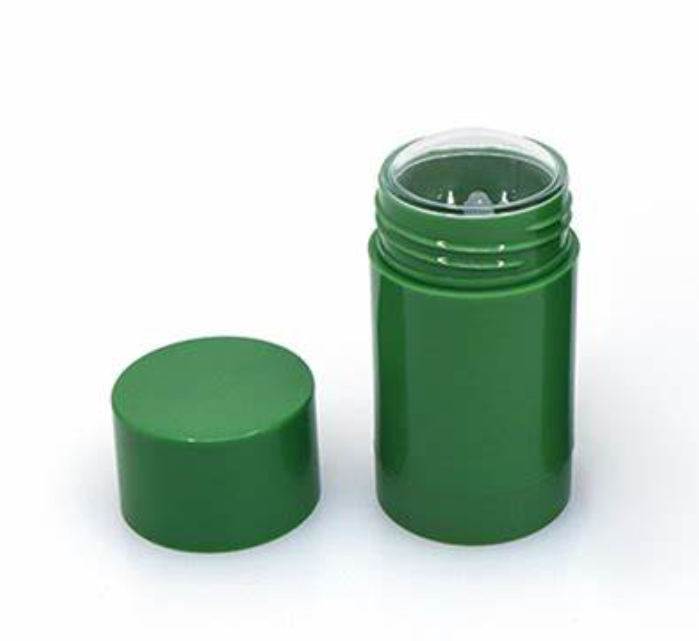

· Ball lip balm,tube lip balm,deodorant stick,petroleum jelly,face balm,SPF stick,blush cream etc..
2 Nozzles Hot Filling and Cooling Line Capacity
· 45pcs/min
· 1 sets of 3 layers of jacketed vessels 50L with stirrer
· Equipped with 2 filling nozzles
. Piston filling system,driven by servo motor,filling volume set on touch screen
. Filling Accuracy +/-0.5%
. All parts contacted with bulk be heated

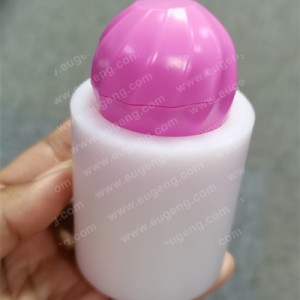

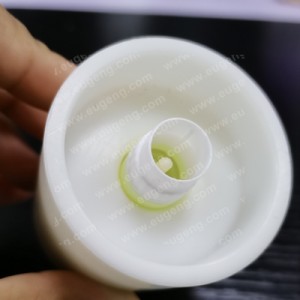

. Hot filling into empty tube/jar directly,customize puck holder to hold tube/jar.
. For some special products with pattern, it requires to customize mold
.Automatic 5P cooling machine after hot filling to cool hot liquid into solid
. Finish pressing cap or automatic capping by hand to get finish products
2 Nozzles Hot Filling and Cooling Line Optional parts:
· 400L heating tank with pump to feed hot product into filling tank automatically as option
.Automatic loading cap system as option
.Automatic pressing cap or automatic capping system as option
.Automatic labeling machine as option

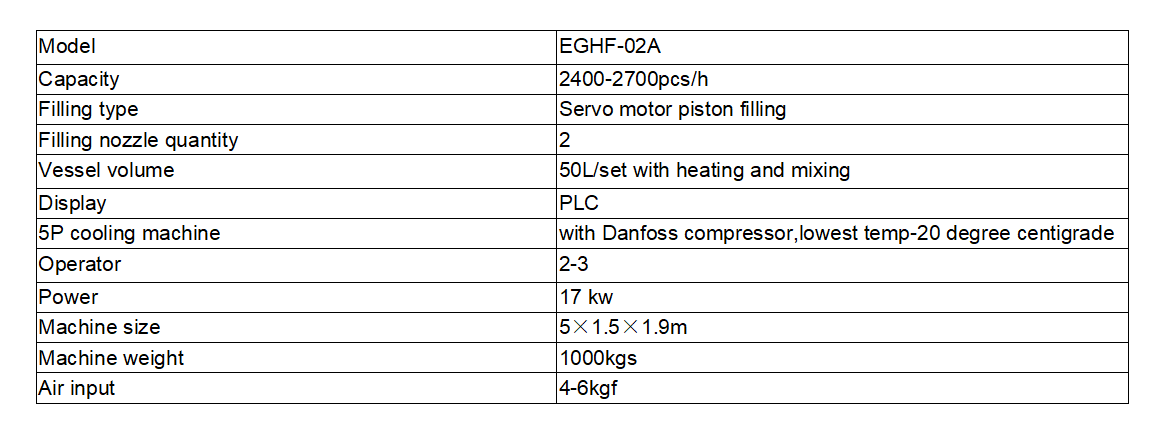

2 Nozzles Hot Filling and Cooling Line Capacity
40-45pcs/min(based on filling volume less than 50ml)
Filling volume 1-500ml
2 Nozzles Hot Filling and Cooling Line Detailed Parts

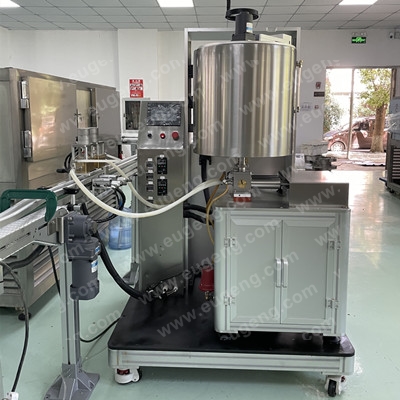

2 nozzles hot filling machine with 50L heating tank

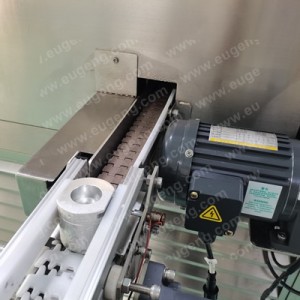

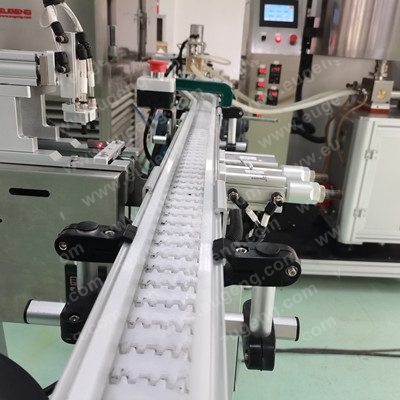

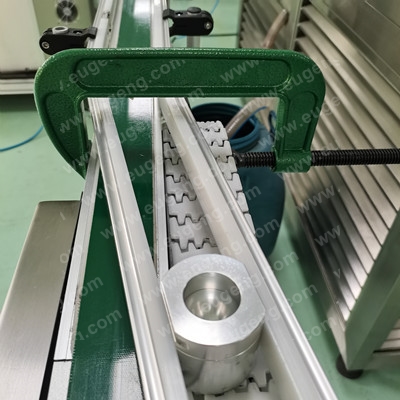

Circle conveyor guider adjustable as different tube/jar size

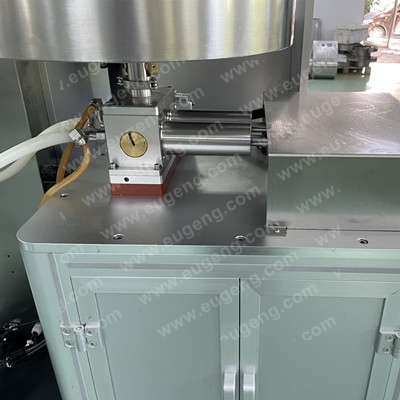

Piston filling system,easy cleaning and product change
Mold customized for special pattern product

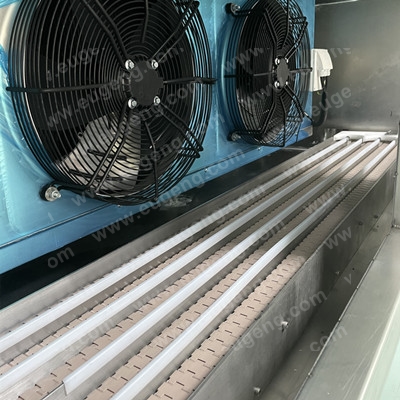

Tunnel cooling machine with France Danfoss compressor

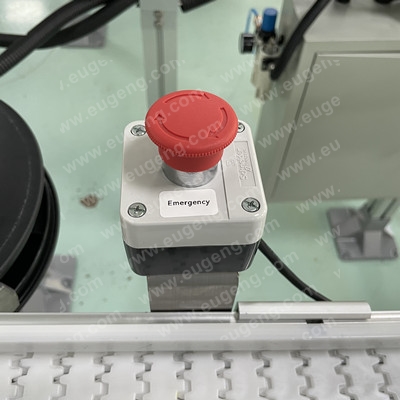

Emergency button to ensure safety
