Automatic Lip Balm Filling Machine
Model EGLF-06A lip balm filling machine is an full automatic lip balm filling line designed for the production of lip balm and chapsticks.
.Full automatic type lip balm filling cooling labeling production line
.6 filling nozzles,piston filling system, servo motor control filling,filling speed and volume adjustable
.1 sets of 3 layers of jacketed vessels 50L capacity with heating and mixing functions
.All parts contacted with bulk be heated
.Filling volume 0-50ml and filling ccuracy +/-0.5%
.Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
.Before filling, automatic air cleaning system to remove dust inside of empty tube
.After hot filling,precooling system with air chiller
.Re-heating unit for make the lip balm surface flat and more shinning after precooling shrinking
.Automatic 5P cooling machine with 11 loops inside
.Frost moving system to prevent freezing and the frost moving cycle time can be adjust
.Cooling temperature can be adjustable down to -15℃.
.Yinghuate refrigeration system and with water cooling cycle system for compressor.
.Automatic loading caps and pressing cap by slope conveyor belt
.Automatic hold conveyor separate finished product with puck holder, and loading products into labeling conveyor
.Puck holder back to filling station
.Automatic horizontal wrap around labeling
.Date/lot number printer as option to print on the tube bottom or body

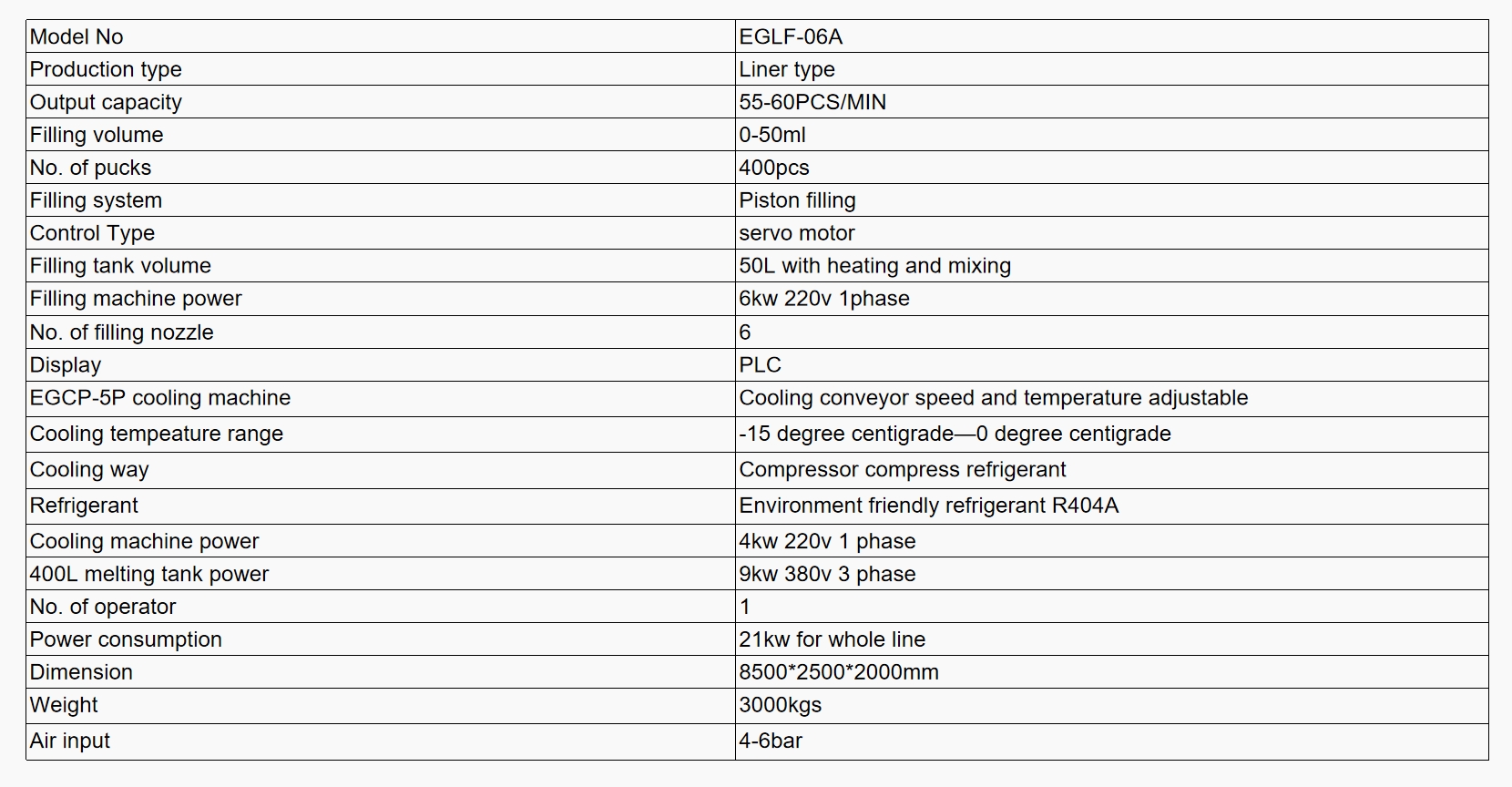

Lip balm filling machine Capacity
55pcs/min (6 filling nozzles)
Lip balm filling machine Mold
Pucks for different size component
ff
Automatic loading empty tube by vibrator
Automatic air cleaning 6 tubes
6 Filling nozzles,servo motor control
Precooling tunnel with air chiller
Reheating to make surface flat
5P cooling machine
11 Loops inside of cooling machine

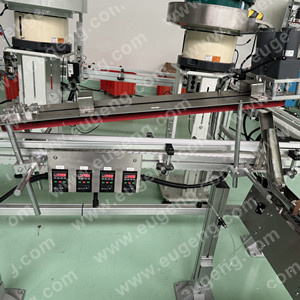

Automatic loading cap by vibrator

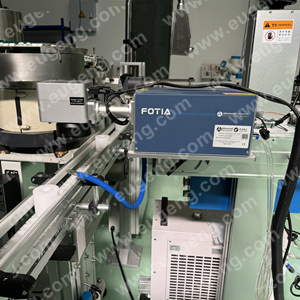

Date/Lot No. printer as option
Slope conveyor belt press cap
Separate product with puck

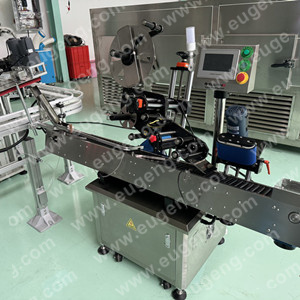

Automatic horizontal labeling machine
