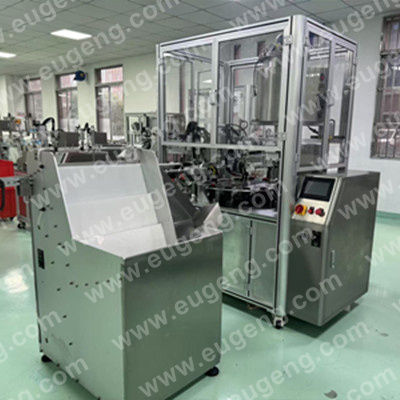

Automatic Lip Gloss Filling Machine
Model EGMF-01A automatic lip gloss filling machine is an automatic filling and capping machine,designed for production of lip gloss,lip cream,
liquid lipstick,mascara,eyeliner,cosmetic liquid,Mousse liquid foundation,lip concealer,nail polish,perfume,essencial oil etc..Suitable for filling both low viscosity liquid and high viscosity paste.
.1 set of 25L heating mixing tank,heating temperature and mixing speed adjustable
.For high viscosity liquid,equipped with pressure plate to ensure liquid flow well into filling nozzle under condition of adding pressure
.Piston filling system,easy product change and color change and each strip down for cleaning
.Servo motor driving,filling while bottle moving down,ensure filling from bottom to up and no bubble and hollow in the middle of bottle
.Filling accuracy +-0.05g
.Fast connector between filling tank and filling port and piston filling system,which can ensure easy strip-down and reassembly for easy cleaning and color change-over
.Suck back volume set function and filling stop position set function after filling to prevent dripping
.Pressing wiper by air cylinder automatically
.Servo motor control capping,capping torque can be set on the touch screen
.Mitsubishi touch screen and Mitsubishi PLC control

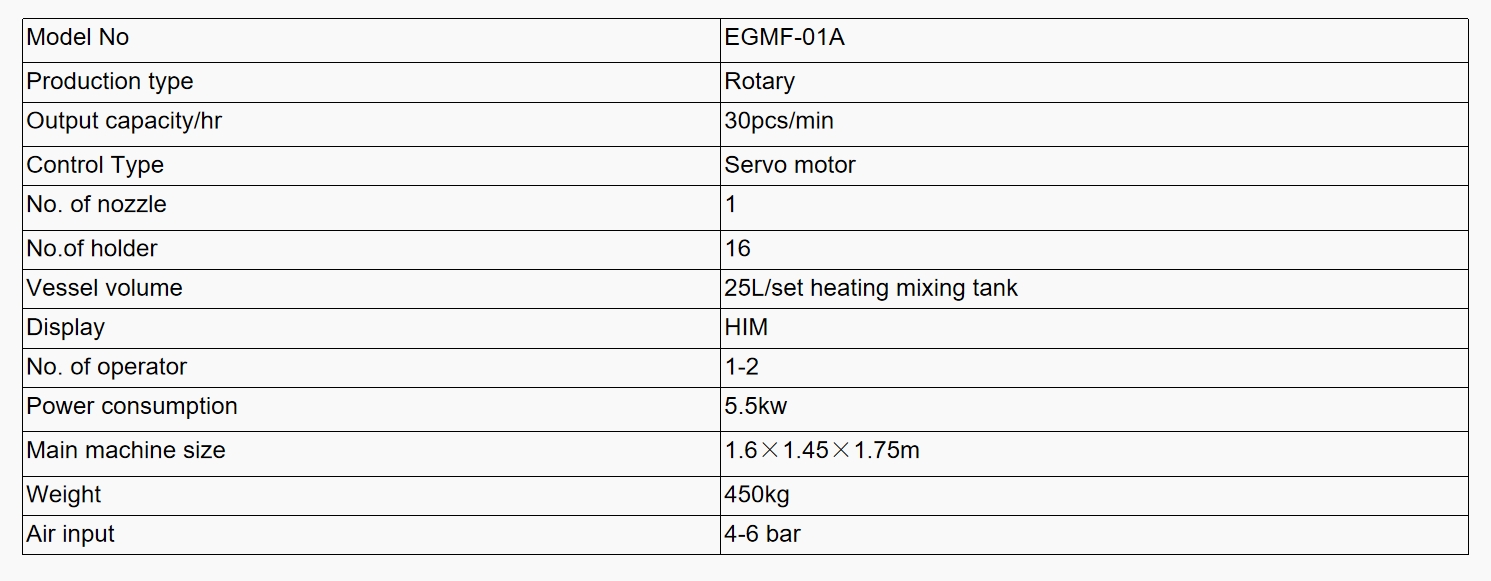

Automatic lip gloss filling machine Speed
.30pcs/min
Automatic lip gloss filling machine pucks
.16 pucks holders,POM materials and customized as bottle shape and size
Automatic lip gloss filling machine components brand
.Mitsubishi servo motor,Mitsubishi touch screen and Mitsubishi PLC,Omron Relay,SMC Pneumatic components,CUH Vibrator

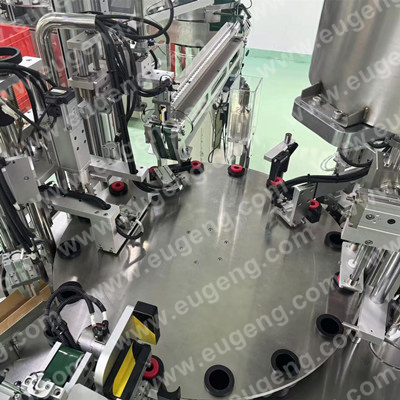

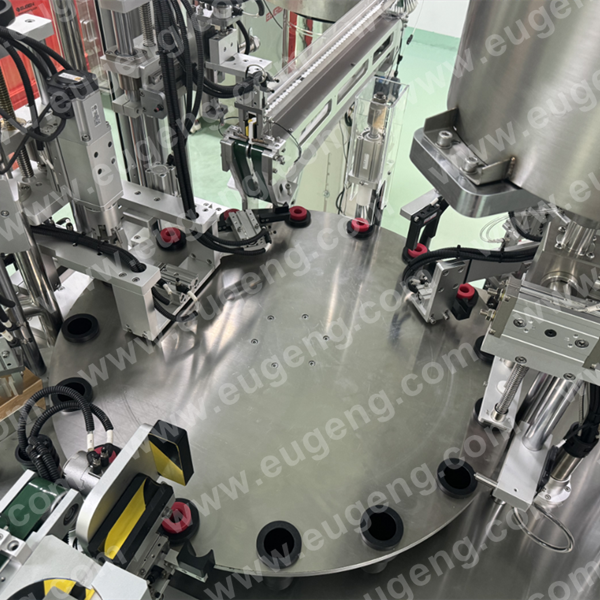

Rotary type,16 pucks holders,
customized as bottle shape and size

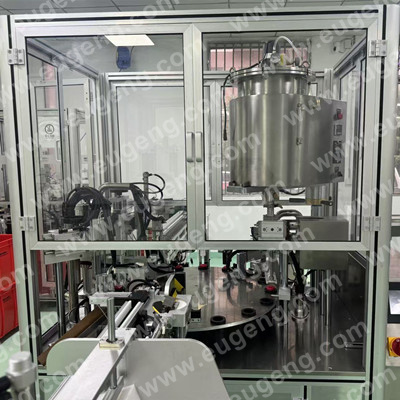

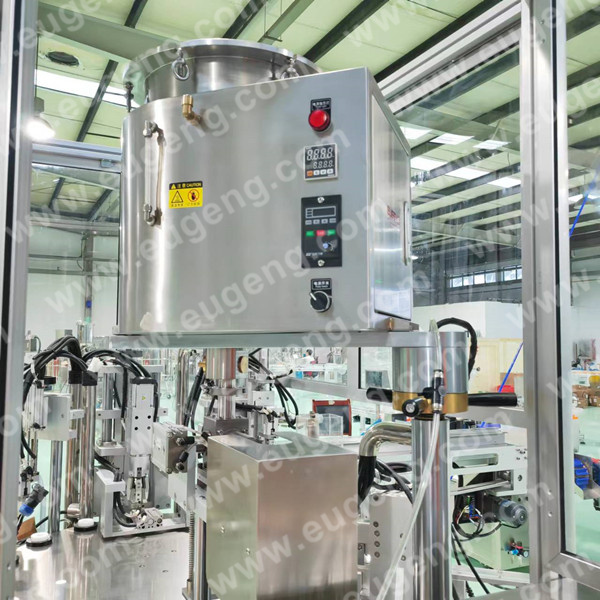

25L heating mixing tank,
temperature and mixing speed adjustable

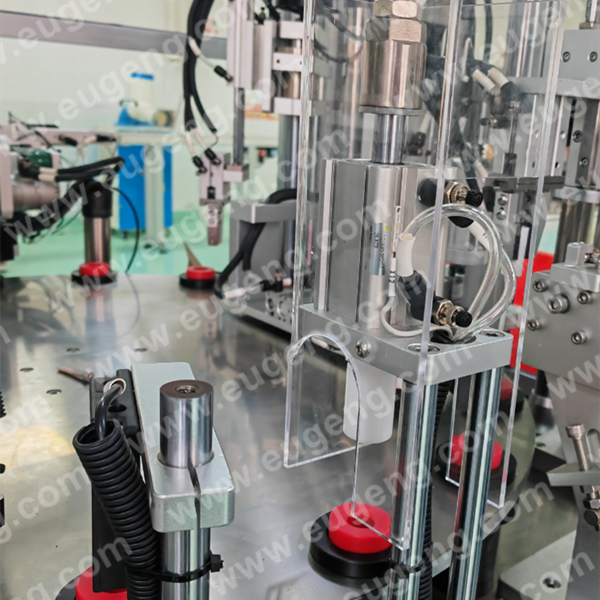

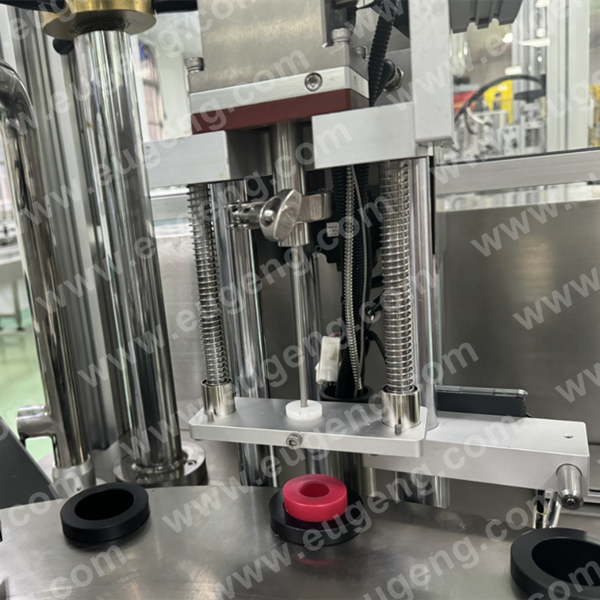

Single nozzle filling,servo motrol control,
filling volume&speed adjustable

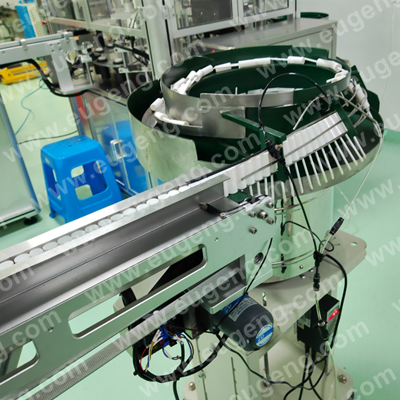

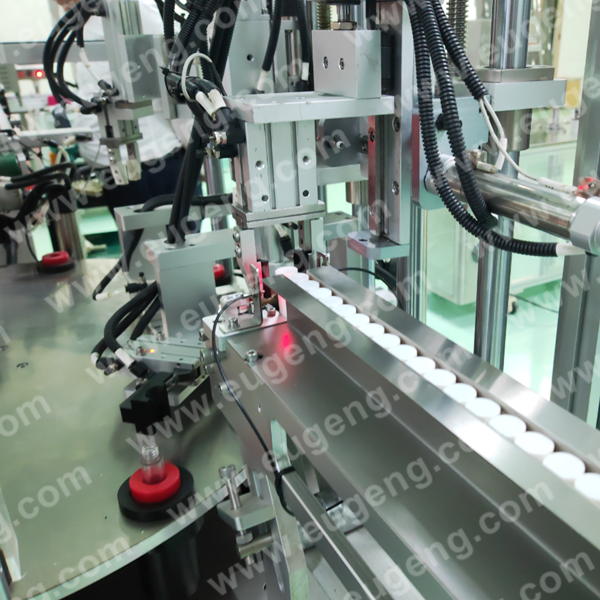

Auto wiper loading and direction guiding system
Auto wiper pressing by air cylinder

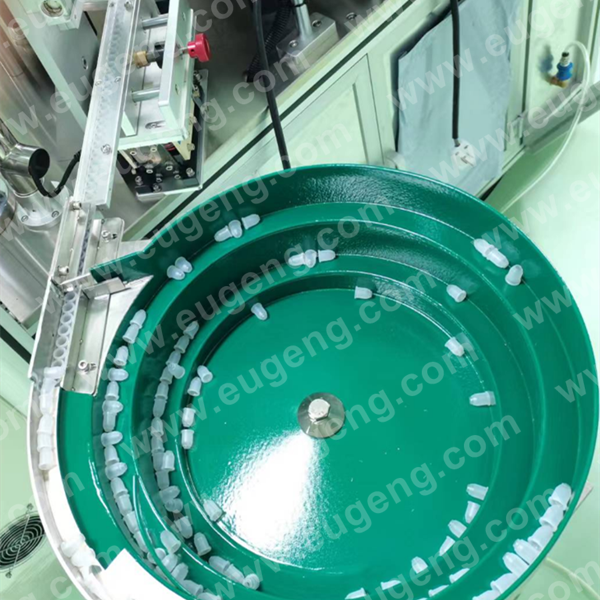

Auto brush loading and pre-capping

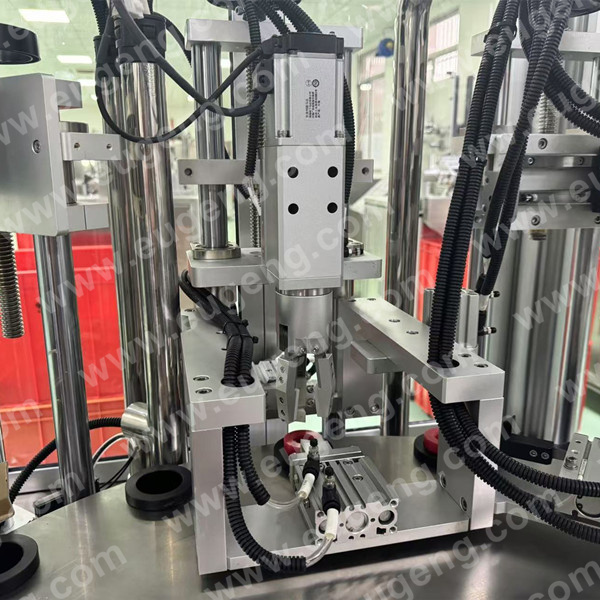

Auto capping,servo motor control,
capping torque set on touch screen

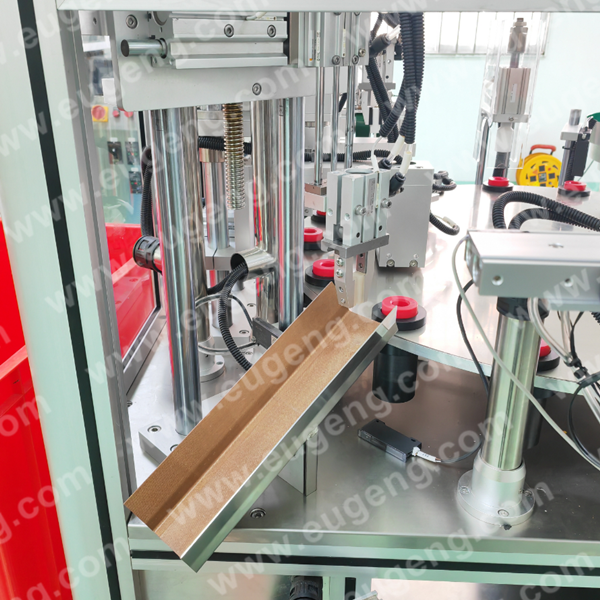

Auto discharge by air cylinder or pick up finished products on the output conveyor

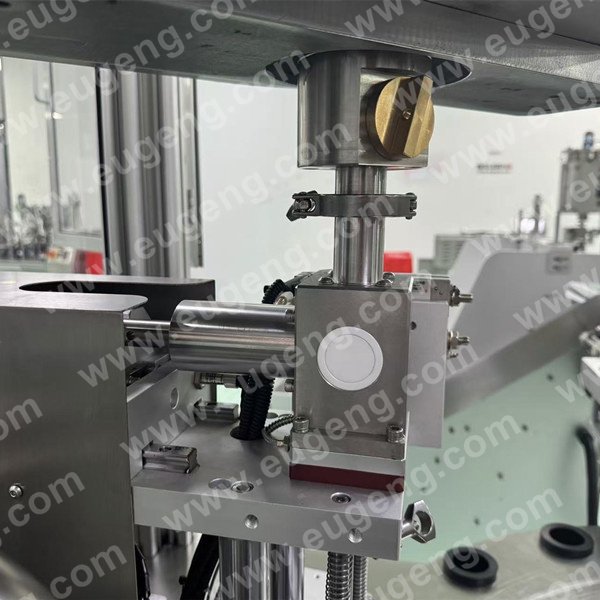

Piston filling system with Ceramic valve
