Lip Gloss Filling Machine Factory Detail:
Lip gloss filling machine factory supply Model EGMF-02 semi-automatic lip gloss filling and capping machine, specially designed for lip gloss,mascara,eyeliner,nail polish,liquid foundation,lip foundation,gel etc..
EGMF-02 lip gloss filling machine has 30L pressure,which can be made with heater and mixer.For different bottles,just customize puck holder molds.
Lip gloss
Mascara
Eyeliner
· 1 set 30L pressure tank,can be customized with heating and mixing functions as demands
· Piston controlled dosing pump, and with servo motor driving , filling while tube moving down
. Machine with sucking back function so that prevent dripping
· Accuracy +/-0.5%
· Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
· Servo-motor capping unit with adjusted torque,capping speed and capping height also adjustable
Touch screen control system with Mitsubishi brand PLC
Servo motor Brand:Panasonic Original: Janpan
Servo motor control the capping , and torques can be adjusted , and reject rate is less than 1%
Lip Gloss Filling Machine Factory Machine wide application :
For high viscosity and low viscosity cosmetic liquid,such as lip gloss,mascara,eyeliner,nail polish,liquid founation,serum,essential oil,perfume etc.
Lip Gloss Filling Machine Factory Machine puck customized
POM(according to the diameter of bottle and bottle shape)
Lip Gloss Filling Machine Factory Machine Capacity
30-35pcs/min(1800-2100pcs/h)
| Model | EGMF-02 with heater and mixer |
| Production type | Push Pucks |
| Output capacity/hr | 1800-2100pcs/h |
| Control type | Servo motor&Air Cylinder |
| No.of Nozzle | 1 |
| Number of pucks | 49 |
| Vessel volume | 30L/set |
| Display | PLC |
| No.of operator | 2-3 |
| Power consumption | 7.5kw |
| Dimension | 1.5*0.8*1.9m |
| Weight | 450kg |
| Air input | 4-6kgf |
65 puck holcer molds
30L pressure tank
Customized tank with heating and mixing functions

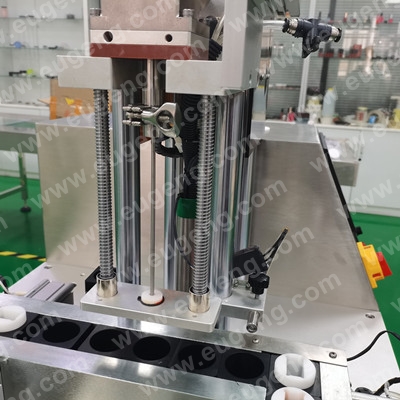

single filling nozzle with servo motor control

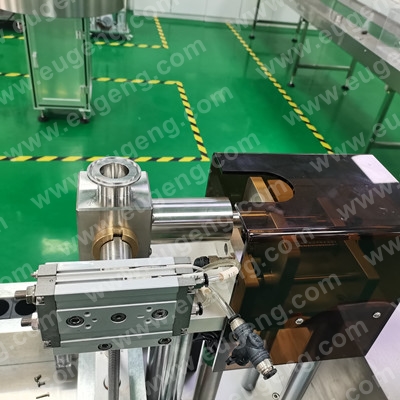

piston filling system,easy cleaning and color change

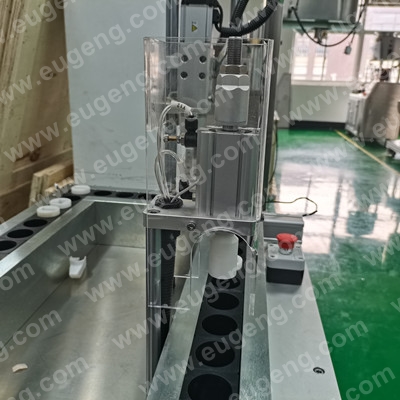

wiper pressing with air cylinder

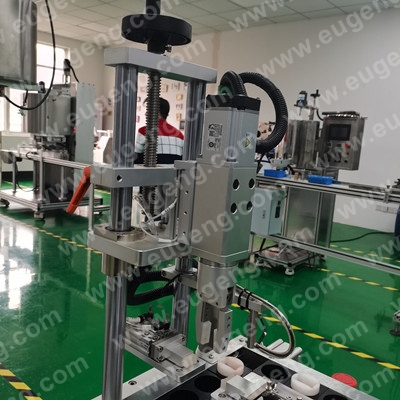

Servo motor capping,capping torque adjustable

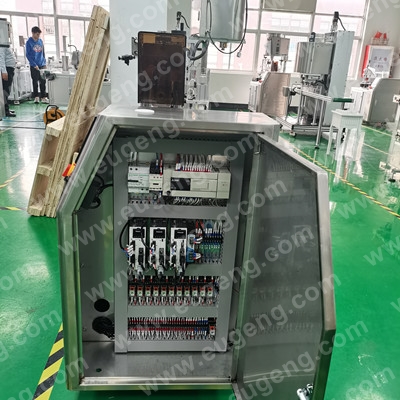

Mitsubishi PLC,Panasonic servo motor
