Mascara Bottom Labeling Machine
Mascara Bottom Labeling Machine Detail:

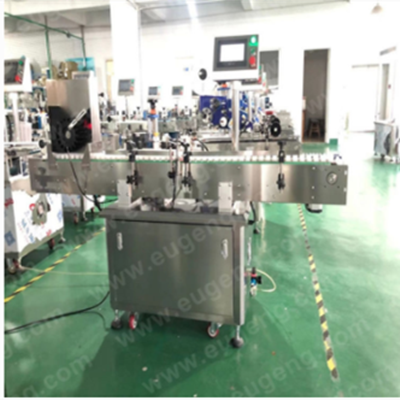

Model EGBL-600 Mascara bottom labeling machine is a semi-automatic horizontal labeling machine design for the production of slim round bottles,tube products,such as lip balm bottles,lip gloss bottles,lipstick bottles,mascara,eyeliner pen and so on.

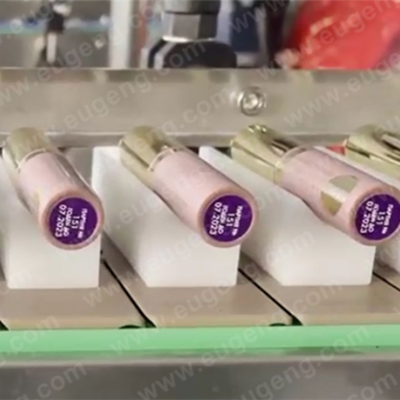

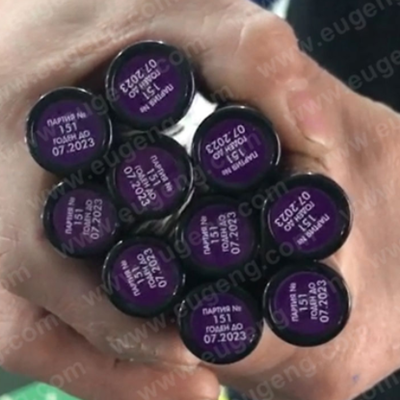

Mascara bottom labeling
Mascara bottom labeling

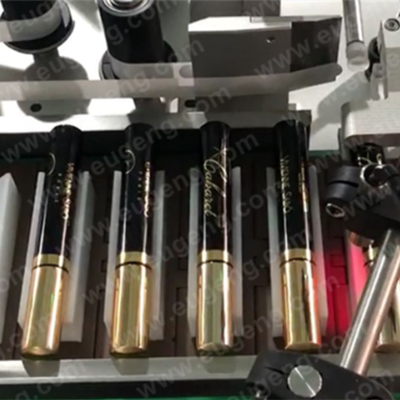

Lip gloss bottom labeling
Automatic sensor check , no products, no labeling
Labeling Accuracy +/-1mm
Automatic roll label for prevent missing label
Labeling head X&Y position can be adjusted
Touch screen operation
Equipped with counting function
Labeling speed,conveying speed and products feeding speed can be set on the touch screen
Label delay length and alarm length can be set on the touch screen
Labeling cylinder time and sucking label time can be set on the touch screen
Language can be customized as user’s language
Product positioning device ensures high labeling accuracy and also higher labeling speed
Mascara bottom labeling machine Capacity
50-60pcs/min
Mascara bottom labeling machine Optional
Transparent label sensor
Hot stamping label sensor
Mascara bottom labeling machine can be equipped with coding machine as requirements
| Model | EGBL-600 |
| Production type | Liner type |
| Capacity | 50-60pcs/min |
| Control type | stepper motor |
| Labeling accuracy | +/-1mm |
| Label size range | 10«width«120mm,length»20mm |
| Display | PLC |
| No. of operator | 1 |
| Power consumption | 1kw |
| Dimension | 2100*850*1240mm |
| Weight | 350kgs |

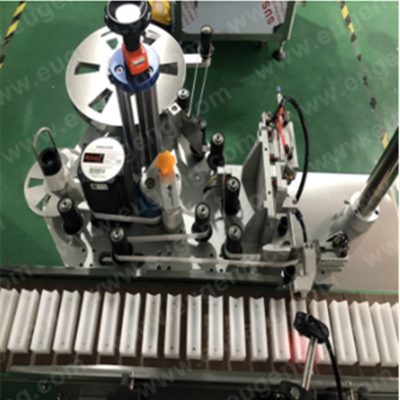

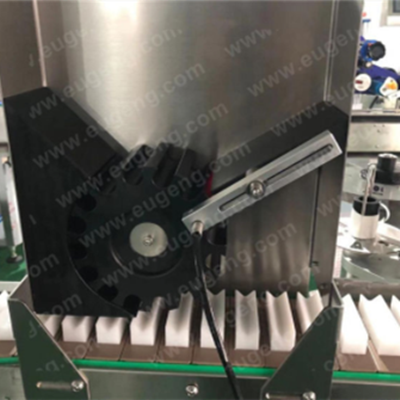

Auto feeding bottle system

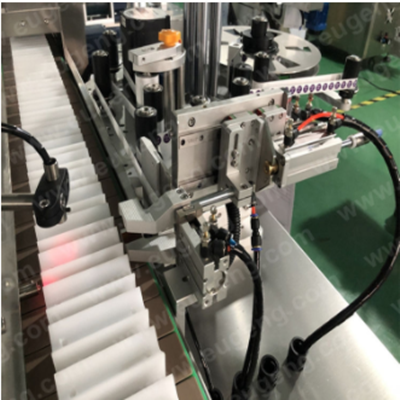

Automatic check the label and correct the position
Product sensor,no product no labeling

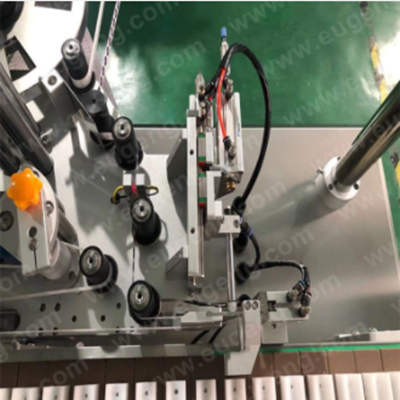

Labeling position can be adjusted based on different product

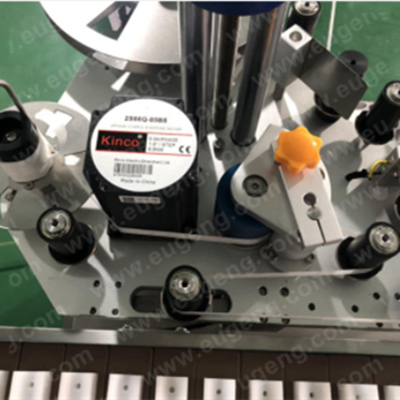

Stepper motor control labeling

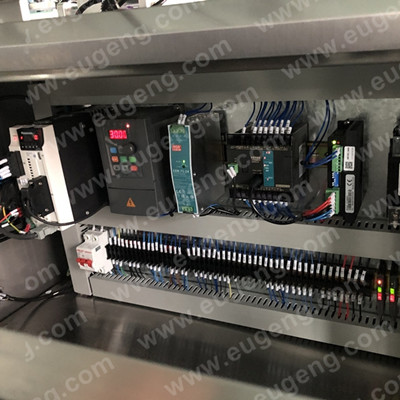

Electric components
Product detail pictures:
