Push Type Mascara Filling Machine

Short Description:

Model EGMF-02 Mascara filling machine is a  semi-automatic filling and capping machine design for the production of lip gloss,mascara, eyeliner,nail polish,cosmetic liquid foundation,concealer,serum,essential oil,perfume card,teeth whitening pen etc..suitable for filling both liquid and high viscosity paste gel ,filling and capping round bottles,square bottles and some irregular bottles.

Mascara filling machine can be equipped with heating and mixing functions as production requirement.


Product Detail

Product Tags

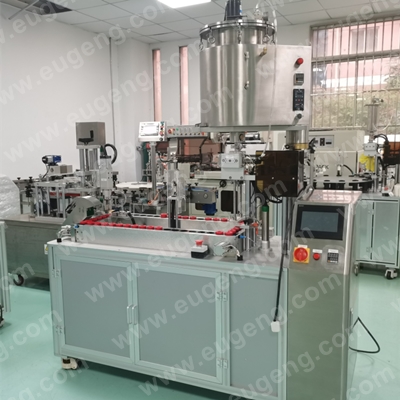

Push Type Mascara Filling Machine

Model EGMF-02 mascara filling machine is a  semi-automatic filling and capping machine design for the production of lip gloss,mascara eyeliner,nail polish,cosmetic liquid foundation,perfume card,teeth whitening pen etc..suitable for filling both liquid and high viscosity paste gel ,filling and capping round bottles,square bottles and some irregular bottles.

Mascara Filling Machine Target Product

Lip gloss

Mascara

Eyeliner

Mascara Filling Machine Product Detail:

·1 set 30L pressure tank with inner plug for high viscosity materials

· Piston controlled dosing pump, and with servo motor driving , filling while tube moving down

. Machine with sucking back function so that prevent dripping

·Accuracy +/-0.5%

·Filling unit designed for easy strip-down cleaning and re-assembly to facilitate

quick change over

·Servo-motor capping unit with adjusted torque,capping speed and capping height also adjustable

·Touch screen control system with Mitsubishi brand PLC

Servo motor  Brand:Panasonic Original: Janpan

Servo motor control the capping , and torques can be adjusted , and reject rate is less than 1%

Mascara filling machine wide application :

Widely used for filling lip gloss,mascara,eyeliner,nail polish,cosmetic liquid foundation,serum,essential oil,perfume,teeth whiten gel etc..

Mascara filling machine puck  customized

POM(according to the diameter of bottle)

Mascara filling machine Capacity

30--35pcs/min

Mascara filling machine optional

30L pressure tank with heating and mixing functions

Extra one set of tank

Extra one set of piston and valve for fast product change and cleaning

Mascara Filling Machine Specification

Model EGMF-02
Production type Push Pucks
Output capacity/hr 1800-2100pcs/h
Control type Servo motor&Air Cylinder
No.of Nozzle 1
Number of pucks 49
Vessel volume 30L/set
Display PLC
No.of operator 2-3
Power consumption 2.5kw
Dimension 1.5*0.8*1.9m
 Weight  450kg
 Air input  4-6kgf

Mascara Filling Machine Youtube Video Link

Mascara Filling Machine Details

mascara filling machine 1

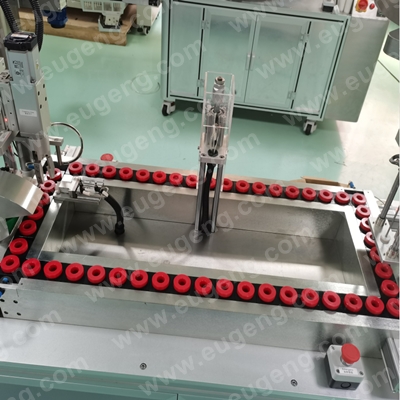

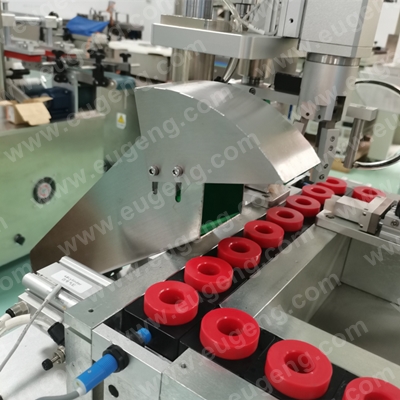

Push Table with 49 puck holders

mascara filling machine 4

Sensor for checking tubes no tube no filling

mascara filling machine 5

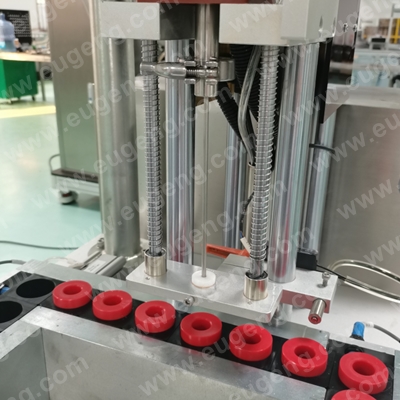

Filling nozzle with guider prevent nozzle broken

mascara filling machine 6

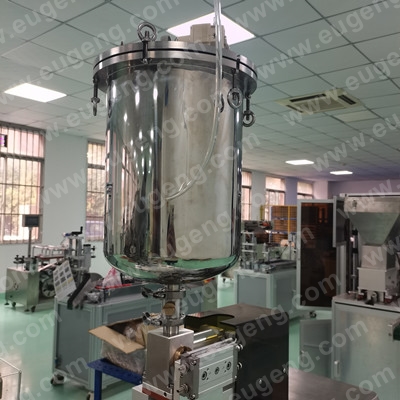

30L pressure tank

mascara filling machine 7

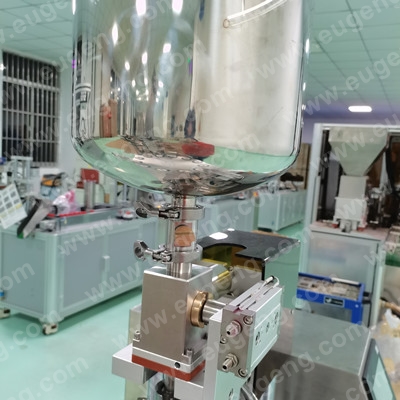

Fast connector between filling tank and filling port

mascara filling machine 8

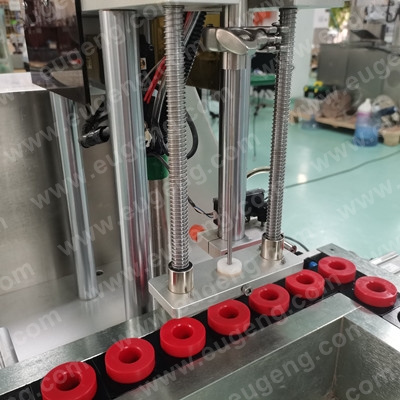

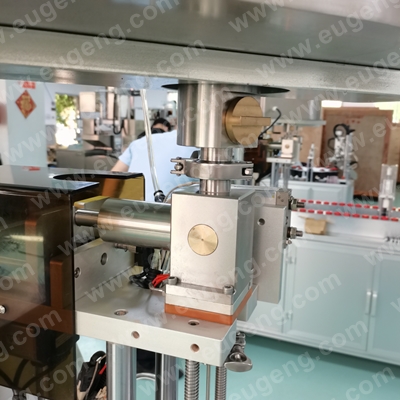

Piston filling system,driven by servo motor,volume adjustable

mascara filling machine 9

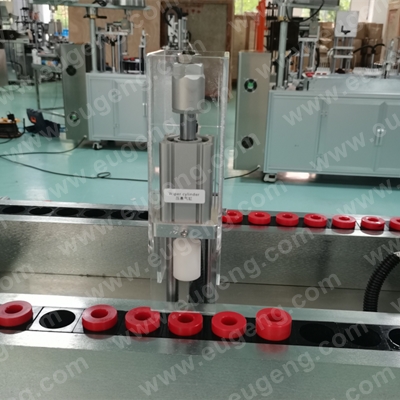

Pressing wiper by cylinder,can turn on/off

mascara filling machine 10

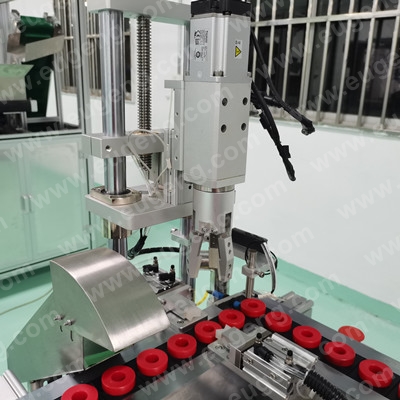

Servo motor capping , torques can be adjustable

mascara filling machine 11

Automatic discharge by air cylinder

mascara filling machine 12

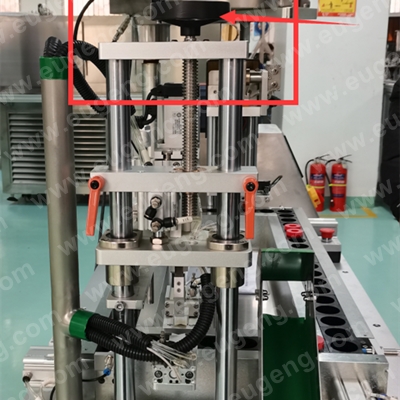

Capping head height adjustable as tube size

mascara filling machine 13

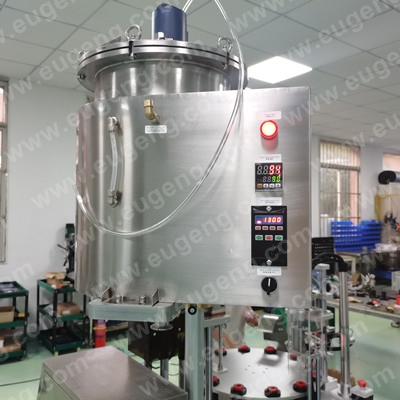

Heating tank as option for hot filling product

mascara filling machine 14

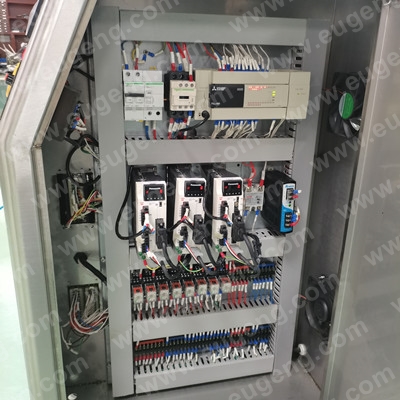

PLC Mitsubishi,Panasonic servo motor

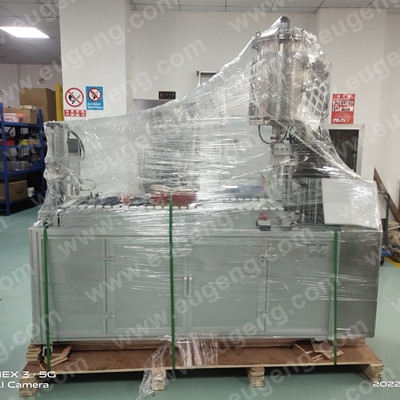

Packaging & shipping
