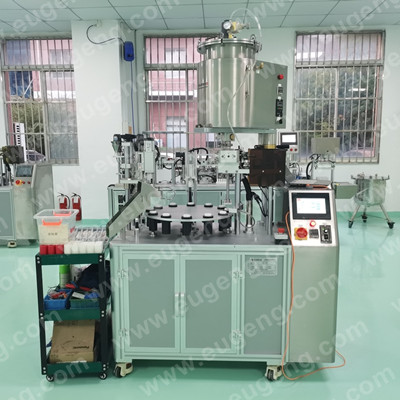

Rotary Type Heating Mixing Lip Gloss Filling Machine
Model EGMF-01 with heating mixing lip gloss filling machine is a semi-automatic filling and capping machine design for the production of high viscous cosmetic liquid,such as lip gloss,mascara eyeliner,gel,cream,suitable for filling both liquid and high viscosity paste.Heating and mixing can turn on/off based on needs.
Lip gloss
Mascara
Eyeliner
·1 set 30L pressure tank with inner plug for high viscosity materials
· Piston controlled dosing pump, and with servo motor driving , filling while tube moving down
. Machine with sucking back function so that prevent dripping
·Accuracy +/-0.5%
· Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
· Servo-motor cappingunit with adjusted torque,capping speed and capping height also adjustable
· Touch screen control system with Mitsubishi brand PLC
Servo motor Brand:Panasonic Original: Janpan
Servo motor control the capping , and torques can be adjusted , and reject rate is less than 1%
Heating mixing lip gloss filling machine wide application :
Widely used for filling high viscosity liquid,cream,gel,lip gloss,mascara,eyeliner etc..

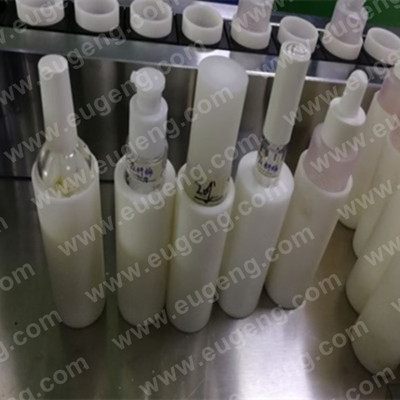

Heating mixing lip gloss filling machine puck customized
POM(according to the diameter and shape of bottle)
Heating mixing lip gloss filling machine Capacity
20-25pcs/min
| Model | EGMF-01 with heating and mixing |
| Production type | rotary type |
| Capacity | 1200-1500pcs/h |
| Control type | Servo motor& Air cylinder |
| No.of nozzle | 1 |
| No. of pucks | 12 |
| Pressure tank | 30L/set |
| Display | PLC |
| No. of operator | 2 |
| Power consumption | 5.5kw |
| Dimension | 1.2*0.75*1.8m |
| Weight | 350kg |
| Air input | 4-6kgf |

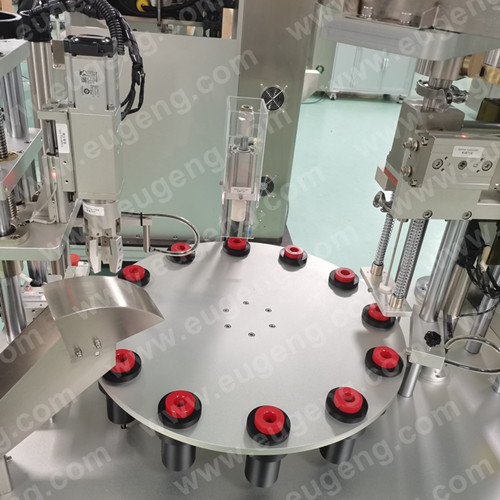

Rotary table
Sensor for checking tubes no tube no filling
Filling nozzle with guider prevent nozzle broken

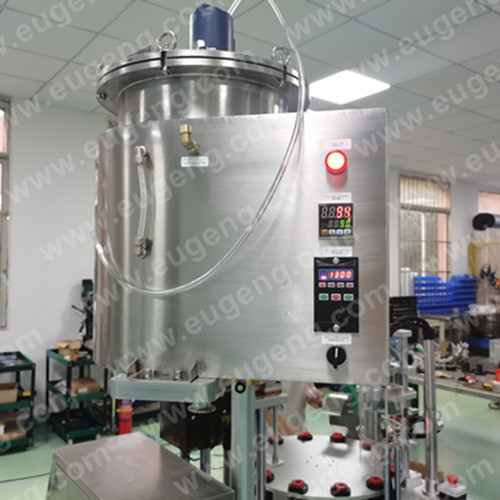

Pressure tank with plug for high viscosity bulk,with heater and mixer
Capping torque and speed is adjustable

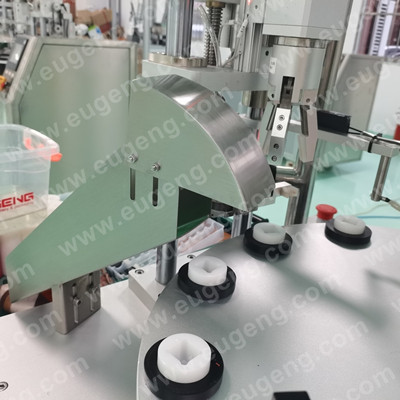

Pressing wiper with cylinder
Filling with servo motor driven ,volume is adjustable
Servo motor capping
Sensor checking
Fast change over and cleaning design
Rotary table speed is adjustable
PLC Mitsubishi
Servo Motor Panasonic
