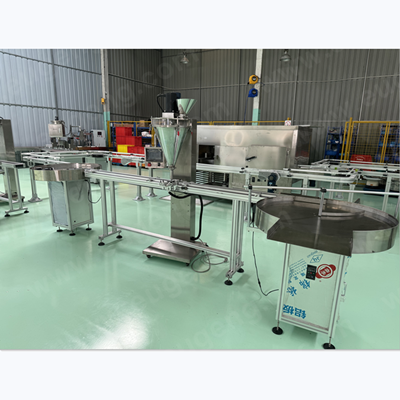

Semi Automatic Loose Powder Filling Machine
Model EGLF-01 loose powder filling machine is a semi-automatic filling machine design for the production of loose powder,nail powder.
Nail powder jar filling and loose powder jar filling
.2m Conveyor with guider , wide can be adjustable

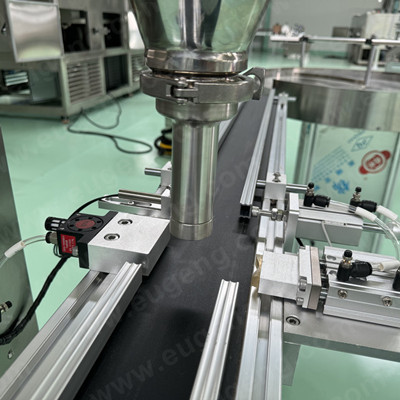

.Sensor for checking , no bottles no filling
.Automatic filling , and filling volume is adjustable from touch screen,

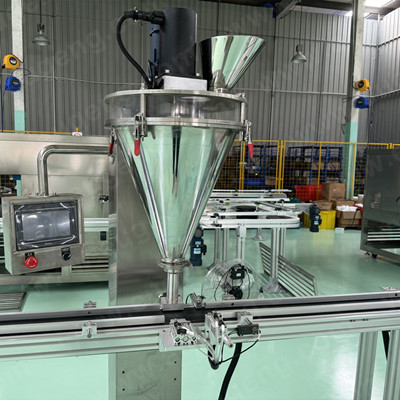

. 25 L Capacity hopper
. Powder hopper mixing speed can be adjustable
. Hopper with safety open sensor , if hopper open , machine mixing stop
. Filling volume 1-100g
. Filling speed is 25-40pcs/min
. Quantitative filling and high filling accuracy
. Equipped with one jar/bottle feeding table before filling and one collection table after filling
. Special funnel design can be very suitable for free fluid powder as nail powder
. Capping machine and labeling machine optional based on user’s demands. Suitable for different kinds of bottles and jars powder filling
Component parts brand: Switch is Schneider , Relays is Omron, PLC is
Delta, Conveyor Motor, mixing motor is ZD, Pneumatic components is
Airtac, Touch screen is Delta
Semi automatic loose powder filling machine Capacity
25-40pcs/min
| Model | EGLF-01 |
| Production type | Liner type |
| Capacity | 25-40pcs/min |
| No. Of filling nozzle | 1 |
| Metering error | ±1% |
| Power consumption | 2kw |
| Dimension | 2000*1000*1200mm |
| Weight | 400kgs |
